I. Introduction
In the intricate world of home entertainment, the display
often gets the glory, but the Audio-Video (AV) receiver is the unsung hero. It
is the beating heart of any modern home cinema system, tasked with the complex
job of routing massive amounts of video data and orchestrating a symphony of
sound with split-second precision. Without a capable receiver, even the most
expensive speakers and 8K televisions are merely disjointed components.
Enter the Onkyo TX-RZ70, a formidable contender
that has shaken up the premium AV market since its launch in Spring 2023. As
the flagship model in Onkyo’s lineup, this receiver isn't just an incremental
update; it is a declaration of intent. With 11.2 channels of amplification,
full HDMI 2.1 connectivity, and the integration of the world-class Dirac Live
room correction system, the TX-RZ70 promises to bridge the gap between
commercial theater performance and the living room.
But does it live up to the hype? This article provides a
thorough examination of the Onkyo TX-RZ70, exploring its core features,
analyzing its relevance within current market trends, and answering the burning
questions potential buyers have. We will uncover why this unit stands out as a
true powerhouse for discerning audiophiles and videophiles alike.
II. Unpacking the Powerhouse: Core Features and
Specifications
To understand the capability of the TX-RZ70, one must look
under the hood. Onkyo has engineered this unit to be a heavy-hitter in every
metric that matters.
Robust Amplification and Channel Count
At its core, the TX-RZ70 is an 11.2-channel beast.
Unlike competitors that may require external amplifiers to reach full
immersion, the RZ70 features 11 powered channels straight out of the box, along
with two independent subwoofer outputs.
- Power
Output: It delivers a muscular 140 watts per channel (8
ohms, 20 Hz – 20 kHz, 0.08% THD, 2 channels driven).
- Class
AB Design: Utilizing a high-current Class AB amplifier design, it
prioritizes clean, accurate sound with low distortion, ensuring that
dynamic movie explosions and subtle musical notes are reproduced with
equal fidelity.
- Flexibility: For
the ultra-enthusiast, the unit includes 13 pre-outs. This
allows users to bypass the internal amps entirely or partially, using the
RZ70 as a high-end pre-processor for even more powerful external
amplification.
Immersive Audio Without Compromise
In the modern era, sound is three-dimensional. The TX-RZ70
supports every major immersive audio format available today, including Dolby
Atmos, DTS:X, Auro-3D, and IMAX Enhanced. Whether it’s the sound of rain
falling from above or a helicopter circling overhead, the receiver places sound
objects in 3D space with pinpoint accuracy.
Additionally, it bears the THX Certified Select badge.
This certification guarantees that the receiver has passed rigorous bench tests
to deliver theater-reference volume and sound quality in rooms where the
screen-to-seat distance is about 10-12 feet.
Cutting-Edge Video Processing for the Future

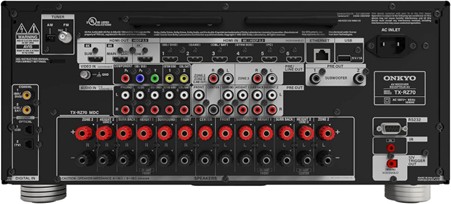

Visuals are handled with equal care. The rear panel houses
six HDMI inputs, all of which are HDMI 2.1 certified.
- Resolution: Full
support for 8K/60Hz and 4K/120Hz.
- HDR
Support: Comprehensive compatibility with HDR10+, Dolby Vision,
and HLG ensures you get the deepest blacks and brightest whites your TV
can display.
- Upscaling: It
breathes new life into older libraries, upscaling 1080p content to 4K or
even 8K.
Optimized Gaming Experience
Gamers often get left behind in the audiophile conversation,
but not here. The TX-RZ70 is a gaming juggernaut featuring:
- VRR
(Variable Refresh Rate): Eliminates screen tearing.
- ALLM
(Auto Low Latency Mode): Automatically switches your TV to game
mode.
- QFT
(Quick Frame Transport): Reduces input lag for smoother
competitive gameplay.
Premium Digital-to-Analog Conversion
The translation of digital zeros and ones into audible sound
is handled by ESS Sabre DACs (ESS9026Pro). These 8-channel DACs are
industry staples for high-fidelity audio, ensuring that high-resolution audio
files (FLAC, DSD, MQA) are rendered with studio-grade purity.
Thoughtful Design and Build Quality
Weighing in at approximately 49 lbs, the sheer
mass of the TX-RZ70 hints at the quality of its internal components,
particularly the power transformer. A unique feature for specific speaker
owners is the Klipsch Optimized Mode, which allows the receiver to
integrate precise crossover values for Klipsch Reference and Reference Premiere
speakers, creating a seamless synergy between amp and speaker.
- III. Precision & Purity: The Transformative Power of
Dirac Live
Perhaps the most significant value proposition of the Onkyo
TX-RZ70 is the inclusion of Dirac Live Room Correction (Full Bandwidth).
What is Dirac Live?
While most receivers come with a basic calibration
microphone, Dirac Live is a professional-grade acoustic calibration system. It
uses sophisticated algorithms and machine learning to analyze your room's
acoustic fingerprints. It doesn't just adjust volume levels; it corrects the
frequency response and the impulse response (timing) of your speakers.
Key Benefits
- Wider
Sweet Spot: Traditional calibration optimizes for a single seat.
Dirac uses multi-point measurement to ensure the audio sounds great across
a sofa or multiple rows of seating.
- Enhanced
Clarity and Imaging: By cleaning up the "mud" caused by
room reflections, dialogue becomes crystal clear, and the soundstage
becomes holographic.
- Deeper,
Tighter Bass: It identifies and corrects room modes (peaks and
nulls in bass frequencies), preventing "boomy" one-note bass.
- Time
Domain Correction: It ensures that sound from every speaker
arrives at your ears at the exact right millisecond, tightening up the
entire sonic image.
Note: For bass enthusiasts, the TX-RZ70 is compatible
with the optional Dirac Live Bass Control (DLBC) upgrade for advanced
multi-subwoofer management.
IV. Seamless Connectivity & Smart Home Mastery
The modern receiver must be more than an amplifier; it must
be a connected hub.
- Wireless
Connectivity: The unit features robust Wi-Fi and bidirectional
Bluetooth. This means you can stream music to the
receiver from your phone, or transmit audio from the
receiver to your Bluetooth headphones for late-night listening.
- Streaming
Giants: Native support is included for Apple AirPlay 2 and Chromecast
Built-In, along with direct integration for Spotify, Tidal, Deezer,
Pandora, and Amazon Music. It is also Roon Ready (via firmware), a massive
plus for serious digital music collectors.
- Smart
Home Integration: The TX-RZ70 plays nicely with Amazon Alexa and
Google Assistant. Furthermore, it boasts "Works With
Sonos" certification, allowing it to tie seamlessly into a
whole-home Sonos ecosystem, controllable directly via the Sonos app.
V. The TX-RZ70 in Context: Riding Home Theater Trends
The release of the TX-RZ70 aligns perfectly with several
surging market trends.
The Ascendance of Immersive Audio
The global Dolby Atmos TV market is projected to grow at a
CAGR of 4.7% through 2033, with Dolby patent growth hitting 15-20% annually.
Consumers no longer just want loud sound; they want spatial sound.
The TX-RZ70’s 11 channels are critical here, allowing for full 7.2.4 setups (7
surrounds, 2 subs, 4 height speakers) without needing extra gear.
The 8K and Gaming Revolution
While 8K content is scarce, 8K-capable hardware is about
future-proofing. Currently, 22% of new AV receivers support 8K. More
importantly, the gaming market demands high frame rates (4K/120Hz). The
TX-RZ70's comprehensive HDMI 2.1 suite ensures it won't be a bottleneck for the
PlayStation 5 or Xbox Series X.
The Connected Home
Statistics show that 35% of new AV receivers emphasize Wi-Fi
and streaming integration. The days of rack-mounting a receiver and never
touching it are over; users want interaction via AirPlay and voice control.
Onkyo’s integration of these features, alongside Sonos compatibility, positions
it as a lifestyle product, not just a black box.
- Market Growth
The overall AV receiver market is projected to grow from USD
1.3 trillion in 2024 to USD 1.6 trillion by 2033. This growth is driven by the
very features the TX-RZ70 champions: immersive audio, wireless connectivity,
and AI-driven optimization like Dirac Live.
VI. Addressing Your Inquiries: Common Questions Answered
For those on the fence, here are answers to the most common
questions regarding the TX-RZ70.
Q: Is the Onkyo TX-RZ70 worth its $2,799 price tag? A: Yes.
When you factor in that the license for the Full Bandwidth version of Dirac
Live (often a $300+ add-on with other brands) is included, the value
proposition is high. You are paying for flagship build quality, 11 channels of
amplification (not just processing), and premium ESS DACs. It is a "buy
once, cry never" investment.
Q: How does it compare to the Denon AVR-X6800H or Marantz
Cinema 50? A: The Marantz Cinema 50 is
cheaper but only offers 9 channels of amplification (110W) compared to Onkyo's
11 channels (140W). You would need an extra stereo amp to run a full Atmos
setup on the Marantz. The Denon AVR-X6800H is a closer rival.
The Denon supports 13.4 channel processing (vs. Onkyo's 11.2) but traditionally
uses Audyssey room correction. While Audyssey is excellent, many enthusiasts
prefer the precision of Dirac Live found on the Onkyo. Furthermore, the Onkyo
is significantly heavier (approx. 49 lbs vs. Denon's 35 lbs), suggesting a more
robust power supply section.
Q: What speakers should I pair with it? A: With
140 watts per channel and 4-ohm stability, the RZ70 can drive almost anything.
It pairs beautifully with Klipsch Reference Premiere speakers due to the
specific "Klipsch Optimized Mode," but it has the headroom to drive
demanding brands like KEF, Bowers & Wilkins, or Focal without running out
of steam.
Q: Is the setup difficult? A: It is
sophisticated, but manageable. The initial Onkyo setup UI is user-friendly.
Running Dirac Live requires using the included microphone and either a
smartphone app or (for best results) a laptop. While it takes about 30-45
minutes to calibrate properly, the on-screen instructions are clear.
Q: Can it truly power a full 7.2.4 Atmos setup? A: Absolutely.
This is one of its biggest selling points. It has 11 powered binding posts. You
can wire a standard 7-channel surround layer and 4 overhead height speakers
directly to the receiver. No external amplifiers are required.
VII. Conclusion
The Onkyo TX-RZ70 is a triumphant return to
form for a legendary brand. It does not merely tick boxes on a spec sheet; it
integrates them into a cohesive, high-performance unit that serves as the
command center for the modern smart home.
By combining massive power, class-leading Dirac Live room
correction, and a future-proof video board, Onkyo has created a receiver that
respects the artist's intent while embracing the future of gaming and
streaming. It offers a level of immersion that soundbars simply cannot
replicate and a degree of flexibility that ensures it will remain the
centerpiece of your entertainment system for years to come.
If you are looking to build the apex of home cinema in your
living room, the Onkyo TX-RZ70 is not just a viable option—it is the one to
beat.
